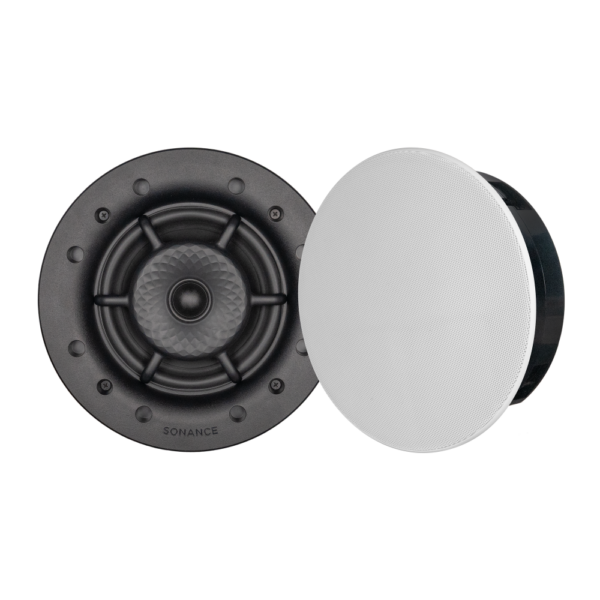

Description The VXXT6R delivers powerful audio in a compact round design, ideal for outdoor, moisture-dense, or other extreme environments that demand performance. The IP66-rated, in-ceiling speaker features Sonance XPC (Extreme Post Capture) grille retention, and is available in round, micro trim or trimless bezel aesthetic to blend into any architectural design. Trimless grille and square grilles optional, sold separately. Product Details Brand SONANCE Product Category Visual Experience Type Speaker Speaker Shape Round Speaker Size 6″ Color Brilliant White (Satin) Warranty LIMITED FIVE (5) YEAR Power Handling 5 watts minimum; 125 watts maximum Cut-Out Dimensions (Diameter) 8.25″ (209.55 mm) Dispersion Technology Sinusoidal Textured Waveguide Frequency Response ( /- 3dB)45Hz – 20kHz /-3dB Impedance 8 ohms nominal; 6 ohms minimum Installation LocationIn-Ceiling IP Rating IP66 Maximum Operating Temperature 194 F (89.9 C) Minimum Impedance 6 Ohms Minimum Operating Temperature -40 F (-39.96 C) Mounting Depth – Speaker Only 3.62″ (91.95 mm) Mounting Depth with Retrofit Enclosure 5.06″ (128.5mm) Nominal Impedance 8 Ohms Product Depth 3.74″ (95.0 mm) Product Diameter 9.17″ (232.92 mm) Product Dimensions – Micro Trim Grille (WxH) 9.64″ (244.8mm) Product Dimensions – Square Micro Trim Grille (WxH) 9.64″ x 9.64″ (244.8mm x 244.8mm) Product Dimensions – Square Trimless Grille (WxH) 9.28″ x 9.28″ (235.6mm x 235.6mm) Product Dimensions – Trimless Grille (WxH) 9.28″ (235.6mm) Product Dimensions (Diameter x D) 9.17″ x 3.74″ (232.92 mm x 95.0 mm) Product Weight 10.8 lbs. (4.9 kg) Sensitivity 89dB (2.83V/1m) Shipping Dimensions WxHxD 11.37″ x 12.67″ x 11.8″ (288.8 mm x 321.82 mm x 299.72 mm) Shipping Weight 13.78 lbs. (6.25 kg) Speaker Tweeter 1.0″ (25mm) waterproof cloth dome, Ferrofluid-cooled, acoustic back chamber Speaker Woofer 6.5″ (165mm) polypropylene cone, Santoprene surround Specialty Application Extreme
