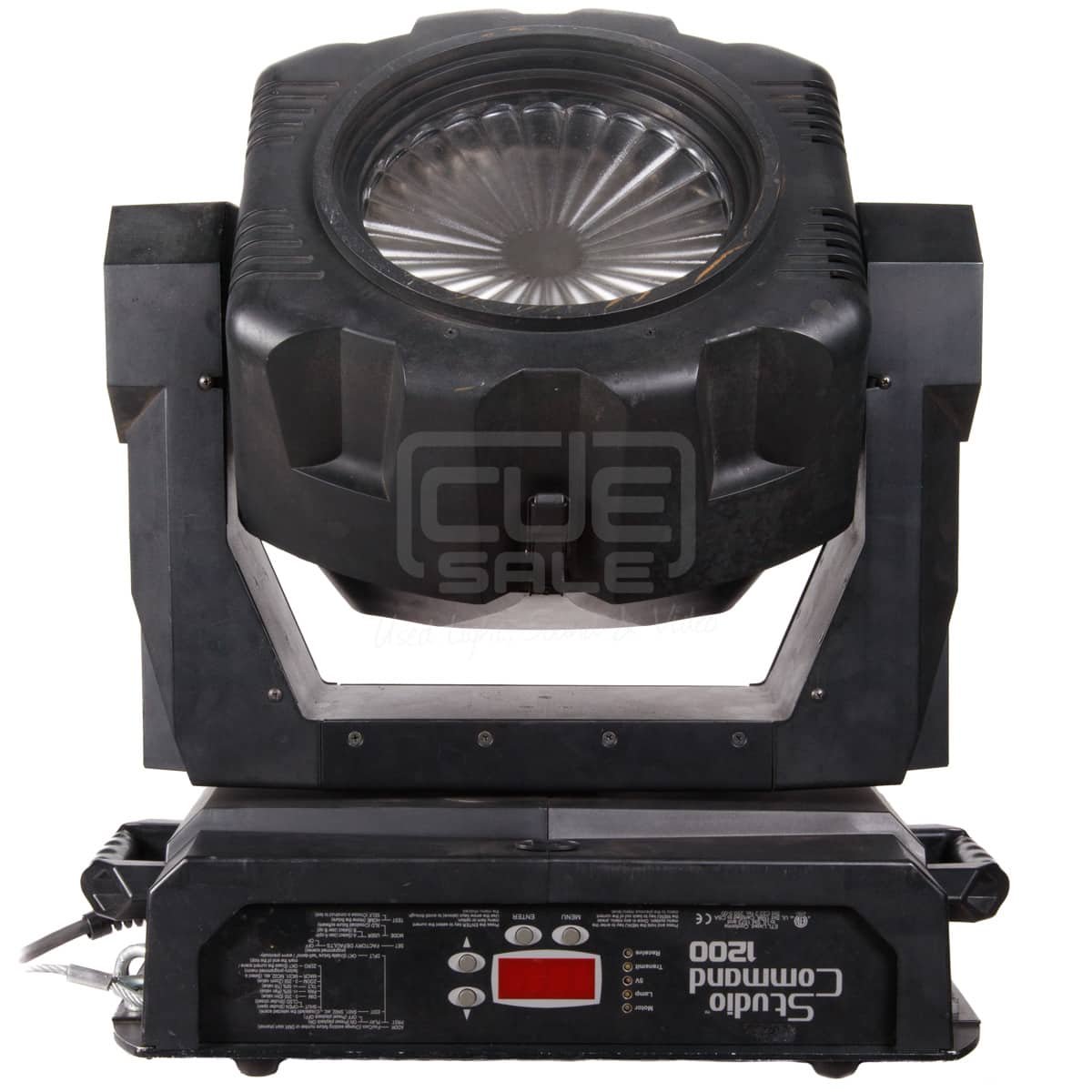

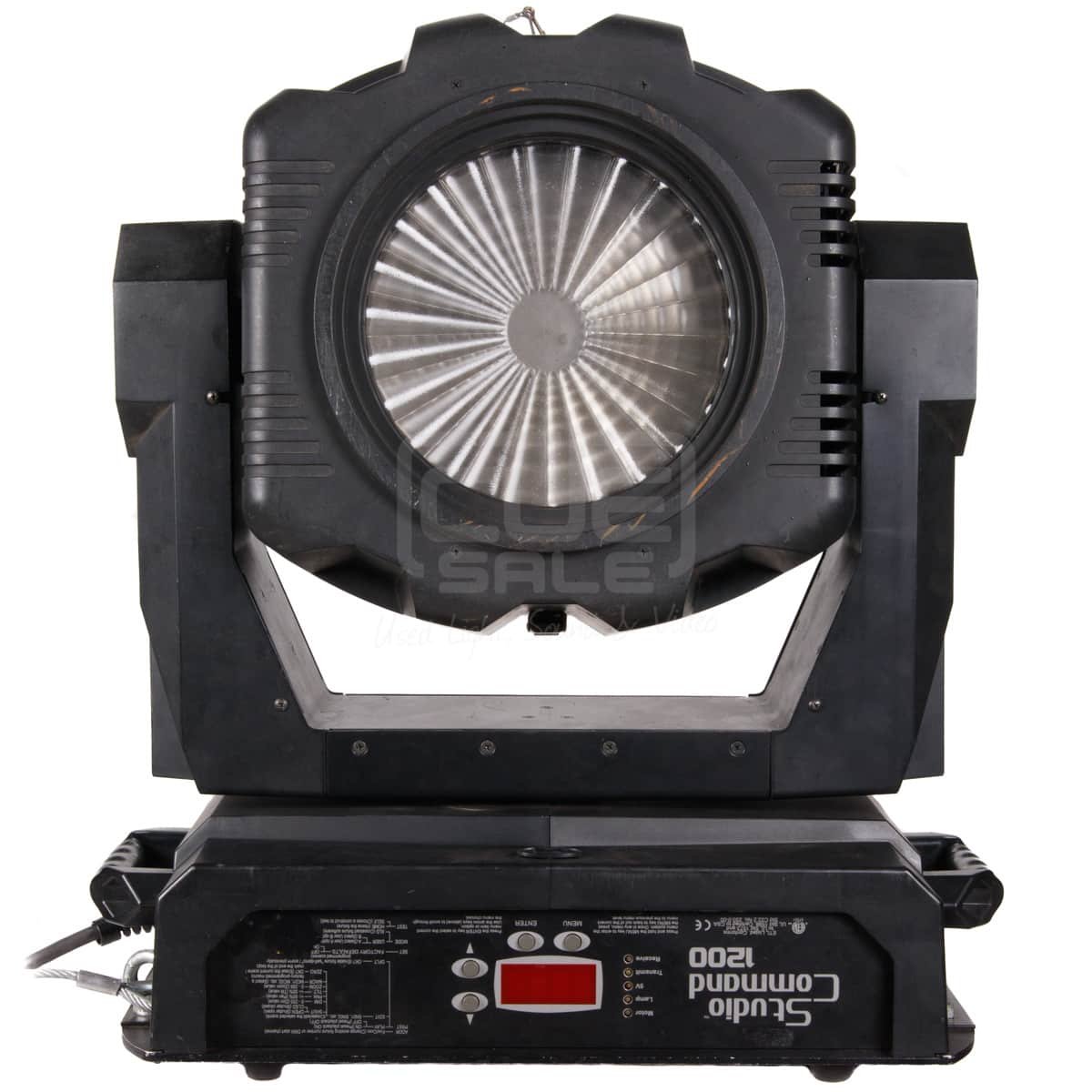

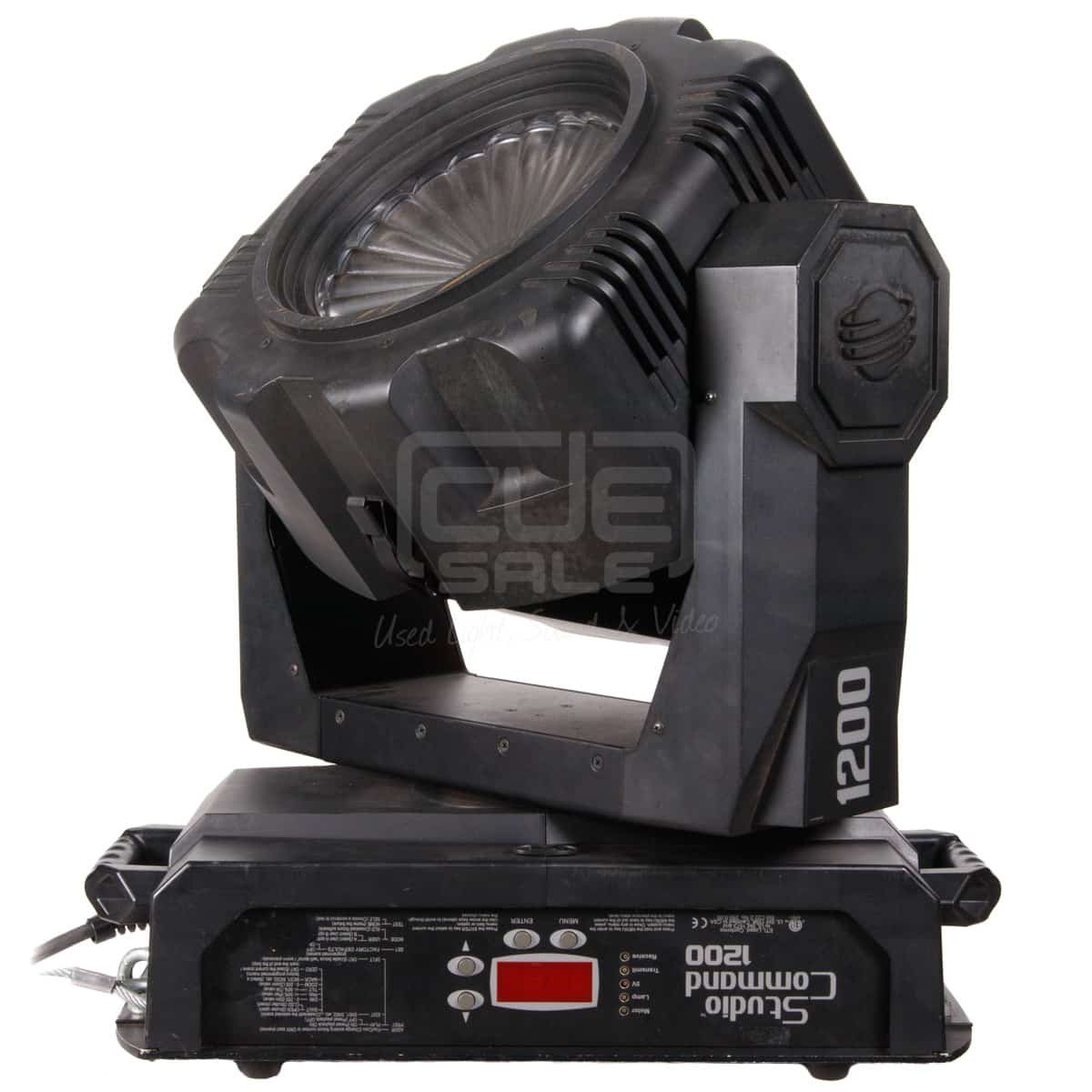

High End Systems Studio Command 1200 Wash LuminaireThe Studio Command Series offer powerful washlights featuring a large exiting beam with a compact head. All models use a patented lenticular array optical system to enhance the homogeneity of the projected light. The moving yoke fixtures feature an adjustable field angle from 18 to 32 degrees, and a CMY dichroic color-mixing system that provides rapid and quiet color changes. Studio Command 1200 uses proven Philips long-life MSR lamps. These models also offer a variable mechanical and electronic strobe, boosted with the Light Burst™ effect, and a mechanical douser for smooth fade to black. The Studio Command 1200 model uses 14 channels on a DMX link. All Studio Command fixtures provide an option for standalone programming and support TalkBack™ technology that allows any DMX console supporting TalkBack protocol to remotely access the Studio Command onboard menu system.Features :Power Consumption : 230V 50-60HZ @ 6.1 AMPFixture Rated Power : 1400 WATTSPan : 540°Tilt : 240°Field Angle : 18°–32°Beam Angle : 8°–13°Fixture Output : 15,000 LumensMaximum Ambient Temperature : 50 CMinimum Distance to Flammable Objects : 3.28 ft. (1 m)Maximum Exterior Surface Temperature : 320 F (160 C)Minimum Distance to lighted object : 6.56 ft (2 m)Compliances : ETL, CE
