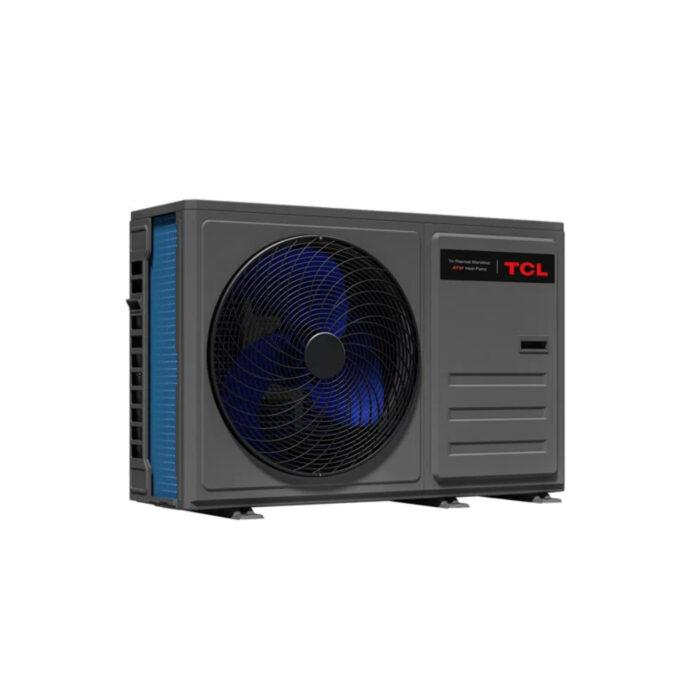

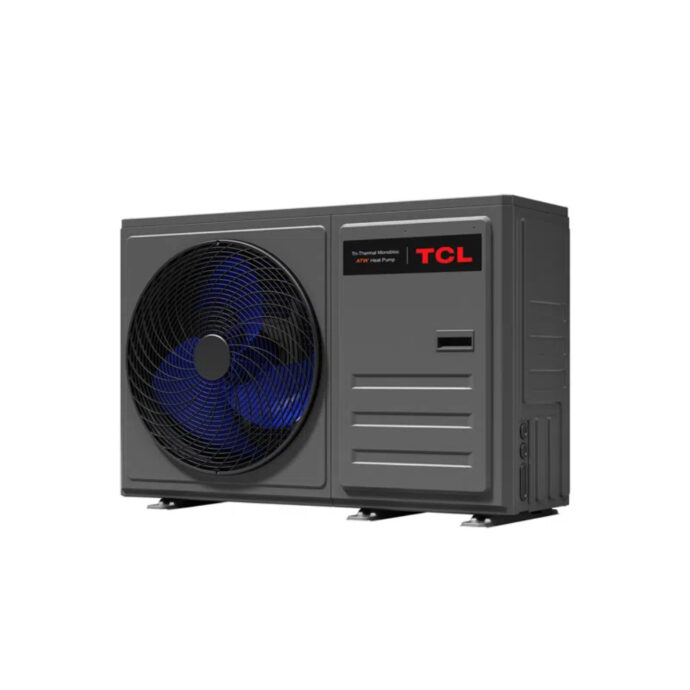

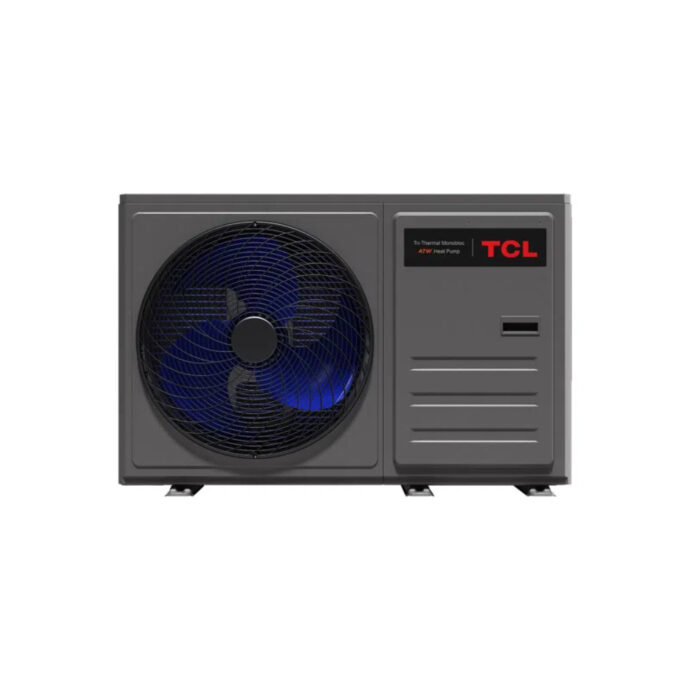

TCL R32 Tri-thermal 8-16 kW Monoblock Heat Pump | Air to Water

3-zone temperature control Individual warmth for every room Energy class: A SCOP up to 5,33 Max. LWT up to 65 °C Ideally suited for replacements and new builds 6-stage frost protection Stable operation at outdoor temperatures down to -25 °C Quiet operation 35 dB(A) at a distance of 3 meters OTA update Enjoy the latest features everywhere. TCL IoT service platform remote monitoring SG ready Continuous adjustment of operating modes to optimize energy consumption and achieve CO2 neutrality in the future. Ensure that different rooms have the perfect temperature! TCL's native 3-zone intelligence eliminates the limitations of traditional 2-zone systems. No additional costs and no complex settings. Comfort temperature for Childrens Furniture Comfort temperature for Living room Comfort temperature for study Absolute peace and quiet The optimized design of the right and rear panels, based on a 3D simulation, significantly reduces vibrations and operating noise: 35 dB(A) at a distance of 3 meters. Six-stage frost protection Six-stage frost protection for stable operation in winter. Electric heating frost protection Water pump antifreeze Compressor antifreeze Heating expansion vessel Plate heat exchanger with electric heating Electric chassis heating Cascade function A maximum of 8 units can be combined to achieve a maximum power output of 128 kW. A smarter and more efficient experience One fingertip, maximum convenience: Control your energy system effortlessly from anywhere, at any time. • Mode selection / Cascade control / Power consumption recording • Priority mode for hygienic hot water / Display of device status and error messages / Temperature, timer setting, etc. Always up-to-date and current – ​​readily available at any time. Revolutionize your heat pump management with the TCL IoT service platform • Real-time remote monitoring and troubleshooting / Centralized management of multiple devices • Display of energy consumption data / analysis of historical data: Reduce maintenance costs and increase efficiency Technical information Variant THMLd-8D/3HBP-A THMLd-10D/3HBp-A THMLd-12S/9HBp-A THMLd-16S/9HBp-A ERP class/Etas EN14825 (35 °C) A A A A ERP class/Etas EN14825 (55 °C) A A A A conservator 8 l 9 l 9 l 9 l Heating output (A-7/W35) 8,0 kW 10,0 kW 12,1 kW 15,0 kW Nominal input power (A-7/W35) 1,85 kW 2,25 kW 2,42 kW 3,54 kW COP at A-7/W35 3,82 3,67 5 4,97 SCOP 4,60 4,68 4,77 4,56 Cooling capacity (A-35/W18) 7,5 kW 10,0 kW 12,0 kW 15,0 kW Nominal input power (A-35/W18) 2,1 kW 2,8 kW 6,97 kW 4,35 kW SEER 5,1 5,3 5,0 4,52 sound power level 50 dB (A) 1 *) 62 dB (A) 1 *) 64 dB (A) 1 *) 68 dB (A) 1 *) Refrigerant (GWP) R32 (675) 2 *) R32 (675) 2 *) R32 (675) 2 *) R32 (675) 2 *) Connections / Threads R5 / 4 ″ R5 / 4 ″ R5 / 4 ″ R5 / 4 ″ Sound pressure outside 35 dB (A) 35 dB (A) 53 dB (A) 55 dB (A) Power Supply 220-240V ~ / 50Hz / 1P 220-240V ~ / 50Hz / 1P 380-415V ~ / 50Hz / 3P 380-415V ~ / 50Hz / 3P dimensions WxHxD × × 1118 865 513 mm × × 1118 865 513 mm × × 1293 860 495 mm × × 712 459 276 mm Weight 105 kg 105 kg 112 kg 112 kg Energy label 1*) Condition for sound power test: EN12102-1 2*) The release of refrigerant contributes to climate change. Refrigerants with a lower global warming potential (GWP) contribute less to global warming in the event of a leak than those with a higher GWP. This system contains refrigerant with a GWP of 675. Therefore, a leak of 1 kg of this refrigerant would have 675 times the impact on global warming as 1 kg of CO2, based on a 100-year period. Do not perform any work on the refrigeration circuit or disassemble the unit – always consult qualified personnel. Downloads Datasheet TCL R32 Tri-thermal 8-16 kW Monoblock Heat Pump Data manual TCL R32 Tri-thermal 8-16 kW Monoblock heat pump Quick installation TCL R32 Tri-thermal 8-16 kW monobloc heat pump Operating instructions TCL R32 Tri-thermal 8-16 kW Monoblock heat pump User manual TCL R32 Tri-thermal 8-16 kW Monoblock heat pump
