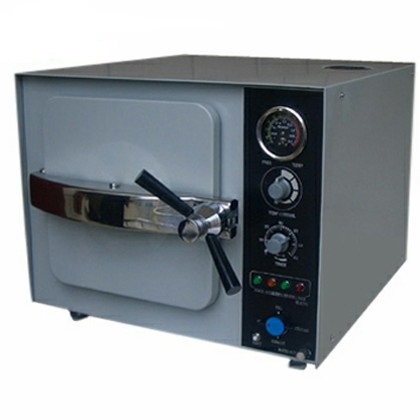

Description Features: Indicator light indicates working state For 4~6 minutes rapidly sterilizing Sterilizing temperature and time can be preset. Steam-water inner circulation system: No steam discharge and the environment for sterilizing will be clean and dry. Over temperature & over pressure auto-protection Safe protection of water lacking 7. Exhaust the cool air automatically With three stainless steel sterilizing plates The chamber of the sterilizer is made of stainless steel Automatically shut off with beep reminding after sterilization Specifications Number Code Name Model/Standard Amount 1 Z Single Phase Three Grade Flat Plug AC220V/10A 1 2 ZD1–4 Pilot Lamp ZD7-11 4 3 F Buzzer AC220V 1 4 K1 Boat-shape switch NM1 20P/ 10A 1 5 K3 Temperature control switch T-0.05-0.24 1 6 K2 Sealed Dish-shape Temperature Control 145 oC ± 3oC 1 7 K4 Button-Switch AN4 2X2 1 8 K5 Time switch DS60/AC220V,10A 1 9 RH Electro-heat Tube 1.5KW/AC220V 1 10 J1 Relay JTX-3C/AC220V 1 11 J2 Relay JTX-3C/AC220V 1 12 J3 Electric magnetic iron JTX/AC220V 1 13 Socket 3GTJE3 1
