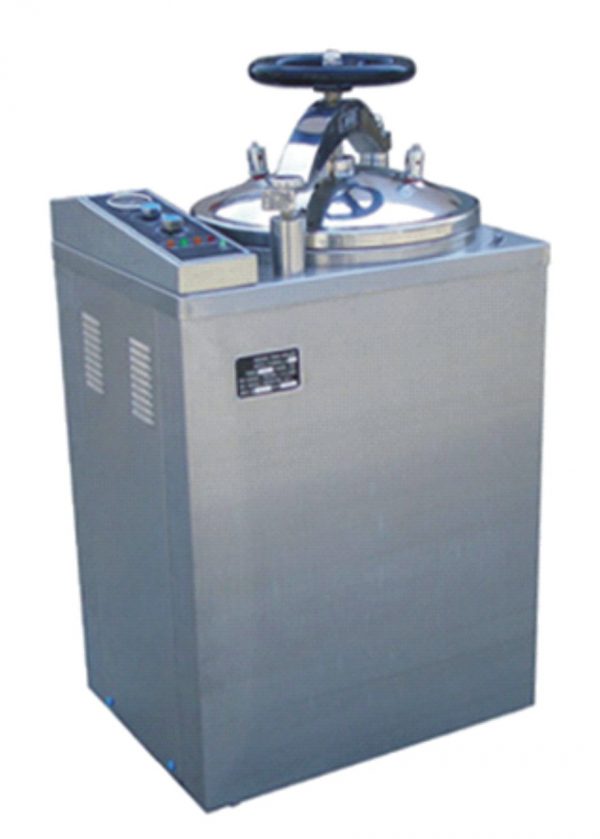

Description DIGITAL DISPLAY AUTOMATIC AUTOCLAVE The Vertical Cylindrical Pressure Steam Sterilizer is installed with an electrical heater, an automatically pressure-temperature controller, a safety valve, releasing valve, a pressure-temperature indicator, an alarm bell for finished sterilization and an instrument to automatically cut off the power of heater . It has the advantages of effective sterilization, convenient operation, safe, less electricity consuming and cheap. It is ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabrics, glasses, culture media etc. Features: • Fully stainless steel structure. • Hand wheel type of quick-open door structure. • Pressure safety lock. • Indicator light indicates working state. • Over temperature & over pressure auto-protection. • Double scale indicate pressure gauge • Self-inflating type seal. • Safe protection of water lacking. • Automatically shut off with beep reminding after sterilization. • Easy to operate, safe and reliable. • Compatible with 2 (Two) dressing drums- Optional ▲ Specification: Model CM 50L Valid volume 50L(φ340*550mm) working pressure 0.22MPa Working temperature 134 Deg. C Max working pressure 0.23MPa Heat average <=± 1Deg. C Timer 0~60min Adjustment of temperature 105~134 Deg. C Power 3KW/AC220V 50Hz Overall Dimension(mm) 410*600*1030 Transport Dimension (mm) 730*500*1290 N/G. W: 93kg/73kg
