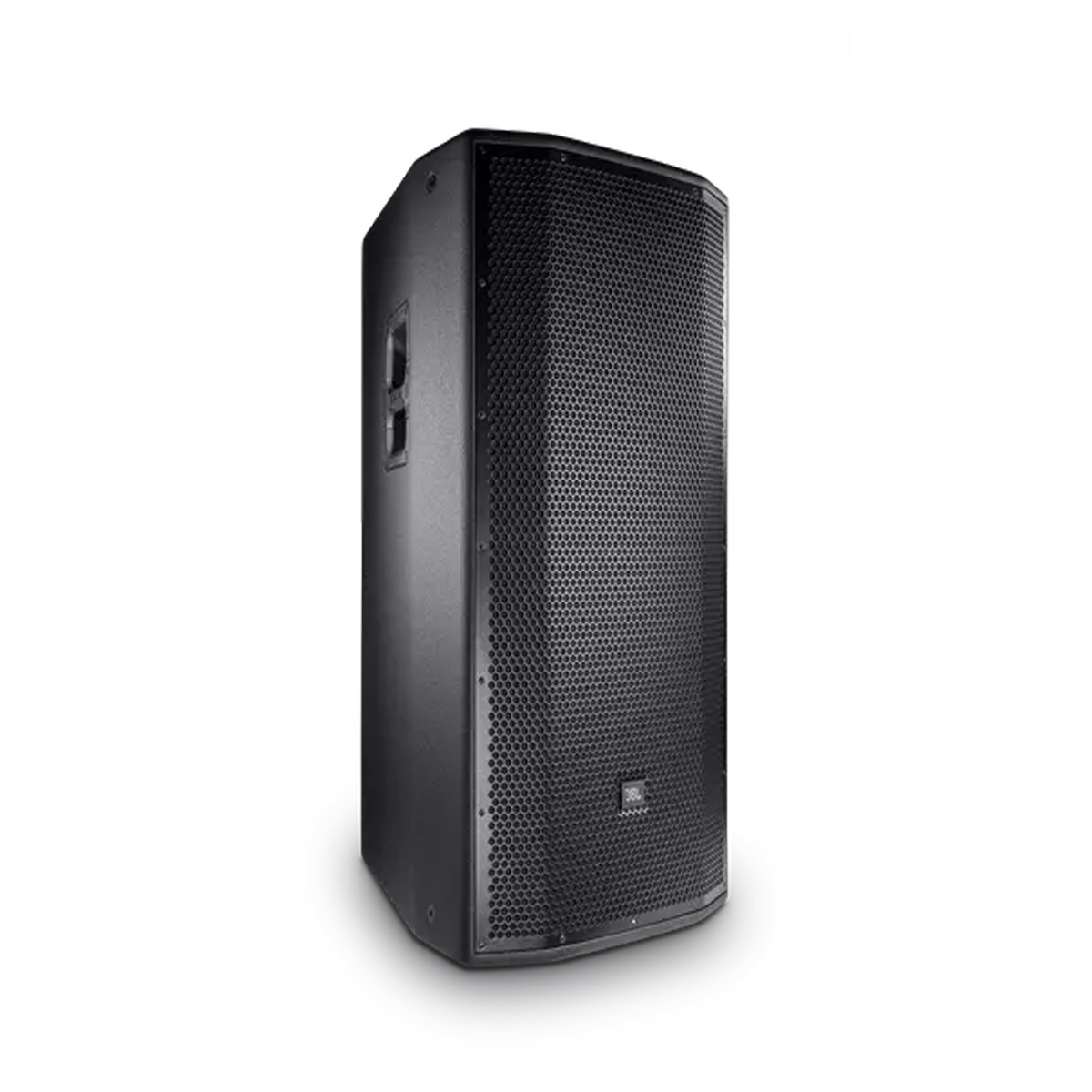

Description JBL PRX835 Powered PA Speakers : System Type : Self Powered 15”, three-way, bass-reflex Maximum SPL Output : 138 dB Frequency Range (-10dB) : Normal: 35 Hz – 20 kHz Boost: 34 Hz – 20 kHz Frequency Response (±3 dB) : Normal: 42 Hz – 20 kHz Boost: 39 Hz – 20 kHz Signal Indicators : Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal : Green LED indicates signal present Power: Blue indicates system has power and ready to pass audio Dynamic Control (Input) : dbx Type IV™ limiter circuit Crossover Frequency : 580 Hz, 2.1 kHz Design : Highly efficient Class-D amplifier Power Rating : 1500W (750W x 2) AC power input : 100V – 240V ~ 50/60 Hz LF Driver : 1 x JBL 275G 380mm (15 in) woofer MF Driver : 1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer HF Driver : 1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver Coverage Pattern : 90° x 50° nominal Directivity Index (DI) : 10.5 dB Directivity Factor (Q) : 11.2 Suspension / Mounting : 12 x M10 Transport : 2 x injection molded handle with backing cup Finish : Obsidian DuraFlex™ finish Grille : Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing. Mic Inputs : 2 Phantom Power : No EQ : User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application. Effects : 25 parametric EQ’s and speaker delay Inputs : 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input Input Impedance : 20K Ohms (balanced), 10K Ohms (unbalanced) Outputs : 1 x XLR (mix out) Enclosure : Trapezoidal, 18 mm, Duraflex coated plywood Dimensions (H x W x D) : 938mm x 446mm x 539mm (36.9in x 17.5in x 21.2in) ENQUIRY This contact form is available only for logged in users.
